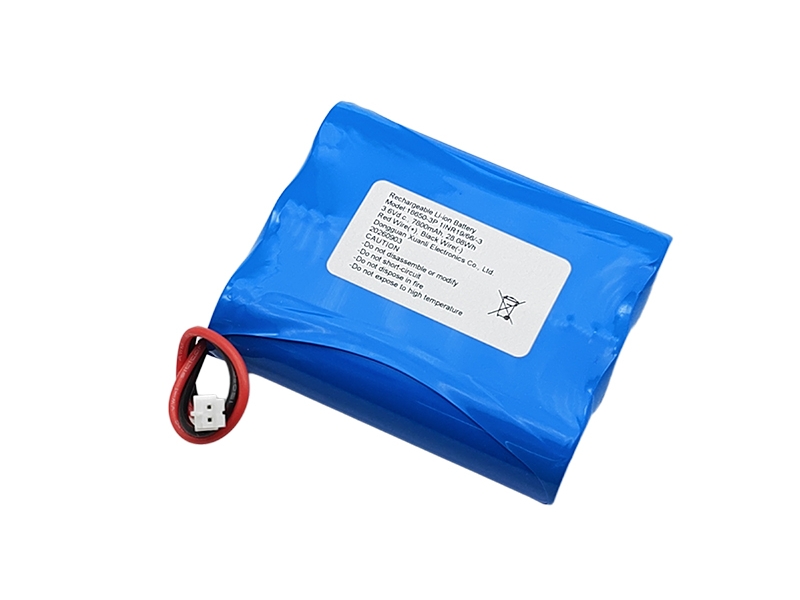

3.6V cylindrical lithium battery product model: XL 18650 3.6V 7800mAh
3.6V cylindrical lithium battery technical parameters (specifically designed according to customer requirements - voltage/capacity/size/wire)
Single battery model: 18650
Single-cell voltage: 3.6V
The nominal voltage of the battery pack after assembly is 3.6V
Single battery capacity: 2.6Ah
Battery combination method: 1 series and 3 parallel
The voltage range of the combined battery is 3.0~4.2V
The combined battery capacity is 7.8Ah
Battery pack power: 28.08Wh
Battery pack size: 20*57*69mm
Maximum discharge current: <7.8A
Instantaneous discharge current: 15.6~23.4A
Maximum charging current: 0.2~0.5C
Charge and discharge cycles: > 500 times
3.6V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
